HDfury Vertex

TAILORED FOR AV PURISTS

PURE SIGNALTOTAL CONTROL
CONNECTCONFIGUREPERFECT
HDfury Vertex
EXPLORE VERTEX ↓
HDFURY VERTEX / WHAT IT IS

HDFURY VERTEX.ONE BOX FOR THE WHOLE HDMI CHAIN.

IN ONE SENTENCEA 4K60 18Gbps HDMI matrix, scaler and HDCP/EDID problem-solver that sits between your sources and your screens.

HDfury Vertex is a compact HDMI 2.0b / HDCP 2.2 device with two HDMI inputs and two HDMI outputs. It routes, splits, switches and scales any signal up to 4K60 4:4:4 600MHz (18Gbps), fixes HDCP and EDID handshake problems, reads and edits HDR metadata, extracts audio — and shows you exactly which signal is passing through.

01 / ROUTING2×2 MATRIX · SPLITTER · SWITCHER

Two inputs, two outputs. Send any source to either output, copy one source to two screens, or switch between two sources.

2 × 2 MATRIX → 02 / VIDEOSCALING & CONVERSION

Upscale, downscale, passthrough or bypass per output, plus chroma, colour space and 8/10/12/16-bit conversion — FHD, UHD and DCI 4K.

SCALING → 03 / PROTECTIONHDCP DOCTOR

HDCP 1.4 ↔ 2.2 conversion in both directions, so older AV receivers, switches and displays work with modern 4K sources.

HDCP → 04 / EDIDEDID MANAGEMENT

100 EDID tables, custom upload, sniff/save/edit, AutoMix of both screens and a separate EDID per input: decide what your source may send.

EDID → 05 / HDRHDR, DOLBY VISION & LLDV

HDR10, HDR10+, HLG and Dolby Vision. Inject, extract or edit HDR metadata, AVI InfoFrame and VSIF live — and LLDV for displays without Dolby Vision.

DOLBY VISION / LLDV → 06 / AUDIOAUDIO EXTRACTION

Passes Dolby Atmos, DTS:X and all other HDMI audio, and extracts audio to analog stereo or optical S/PDIF up to 5.1 via the 3.5 mm combo jack.

AUDIO → 07 / DIAGNOSTICSSIGNAL INFO ON OLED & OSD

The OLED screen and the on-screen display show resolution, frame rate, colour format, bit depth, HDR and HDCP of what goes in and out.

READ THE SIGNAL → 08 / CONTROLTOTAL CONTROL

Front-panel buttons, IR remote codes, a Windows USB GUI, RS232 for Windows, Mac and Linux, and an Android/iOS app with the optional GoBlue.

CONTROL →

Good to know: Vertex is an HDMI 2.0-class device. It handles everything up to 18Gbps — for example 4K60 4:4:4 8-bit, 4K60 4:2:2 12-bit or 4K120 4:2:0 8-bit — but it does not pass HDMI 2.1 modes such as 4K120 10-bit HDR, VRR or 48Gbps.

FULL SPECIFICATIONS →SETUP ASSISTANT →MANUAL & DOWNLOADS →BUY VERTEX →
03 / DOLBY VISION & LLDV

DOLBY VISION.
INCLUDING LLDV.

THE BIG LLDV ADVANTAGEYOUR SCREEN DOESN'T SUPPORT DOLBY VISION? YOU CAN STILL WATCH DOLBY VISION CONTENT.

With a compatible LLDV source, Vertex can make a Dolby Vision workflow possible with compatible HDR TVs and projectors that do not natively support Dolby Vision. The source performs the Dolby Vision processing; Vertex manages the EDID / Dolby Vision capability path.

VERTEX / LLDV DISPLAY BRIDGEACTIVE
NO NATIVE DOLBY VISION ON YOUR DISPLAY?
WATCH DOLBY VISION CONTENT ANYWAY.
SOURCEDOLBY VISIONPLAYER / STREAMER
DV
HDMI CONTROLVERTEX + LLDVEDID / DV CAPABILITY
LLDV
DISPLAYNON-DV HDRTV / PROJECTOR

THIS IS THE KEY BENEFIT. With a compatible player-led Dolby Vision source and a correctly configured HDR display, LLDV lets you use Dolby Vision content in a system where the TV or projector itself does not have native Dolby Vision support.

FOLLOW THE LLDV SIGNALTHE GREEN PULSE = VIDEO MOVING THROUGH THE HDMI CHAIN
STEP 01COMPATIBLE SOURCE

Apple TV / disc player / streamer

DOLBY VISION CONTENT
STEP 02PLAYER-LED DV

source performs Dolby Vision processing

LLDV HDMI SIGNAL
STEP 03VERTEX

EDID · DV capability · HDMI control

CONTROLLED HDMI PATH
STEP 04HDR DISPLAY

TV or correctly configured projector

① VERTEX TELLSEDID / DV capability

Vertex manages the capability information presented through the HDMI chain.

② SOURCE PROCESSESPlayer-led Dolby Vision

The compatible source performs the Dolby Vision processing and creates the LLDV output.

③ DISPLAY SHOWSCorrect HDR configuration

The TV or projector must still be able to handle the resulting workflow correctly.

DOLBY VISION CONTENT — BEYOND NATIVE DV DISPLAYS

✓Watch Dolby Vision content on a compatible non-Dolby-Vision HDR TV or projector by using a compatible source in player-led Dolby Vision (LLDV) mode.
✓Control the EDID/Dolby Vision capability seen by the source.
✓Build advanced home-cinema workflows with HDR-capable projectors.

WHAT VERTEX DOES NOT DO

×It does not make an HDR projector a native Dolby Vision projector.
×It does not itself perform Dolby Vision dynamic tone mapping.
×It does not remove the need for correct source, EDID and HDR settings.
REMEMBERSource = processing.   Vertex = EDID and HDMI capability control.   Display = correct HDR handling.
UNDERSTAND LLDV →CHECK MY EQUIPMENT →BUILD MY SETUP →VIEW SETUP LIBRARY →

VERTEX TECHNOLOGY / INTERACTIVE GUIDE

WHAT DOES IT
ACTUALLY MEAN?

Click one of the six technologies above or select it here. This section explains what the number or feature means in a real video system.

OPEN FULL VERTEX GLOSSARY →
01 / INTERFACE

HDMI 2.0b

IN PRACTICE

HDMI 2.0b18Gbps600MHz2×2 MATRIXEDIDSCALING

HDfury VERTEX

CONTROL THE
HDMI CHAIN.

Vertex combines HDMI routing, scaling, EDID management and signal information in one compact device — built for complex AV systems where you want control instead of guesswork.

EXPLORE FEATURESVIEW SPECS
HDfury Vertex product

ENGINEERED FOR CONTROL

ONE BOX.
MORE CONTROL.

01 SYSTEM NODE

2×2 HDMI MATRIX

Route two HDMI sources through a flexible two-output system.

OPEN GLOSSARY → 02 SYSTEM NODE

EDID MANAGEMENT

Take control of display capabilities and difficult source/display handshakes.

OPEN GLOSSARY → 03 SYSTEM NODE

SCALING

Adapt mixed-resolution display chains with integrated scaling control.

OPEN GLOSSARY → 04 SYSTEM NODE

SIGNAL INFO

See what the HDMI chain is actually doing: format, timing, HDR, HDCP and audio status.

OPEN GLOSSARY → 05 SYSTEM NODE

HDCP CONTROL

Manage compatibility between equipment using different HDMI/HDCP requirements.

OPEN GLOSSARY → 06 SYSTEM NODE

AV INTEGRATION

Control Vertex from the front panel, IR, RS232 or Windows GUI, with optional GoBlue mobile control.

OPEN GLOSSARY → 07 SYSTEM NODE

HDR TOOLKIT

Work with HDR10+, HLG, Dolby Vision and LLDV workflows plus HDR metadata and InfoFrame tools.

OPEN GLOSSARY → 08 SYSTEM NODE

AUDIO DE-EMBEDDING

Extract HDMI audio through analog or optical output and integrate ARC audio into AV systems.

OPEN GLOSSARY → 09 SYSTEM NODE

HDMI DOCTOR

Troubleshoot EDID, HDMI/HDCP handshakes and difficult source/display compatibility problems.

OPEN GLOSSARY →

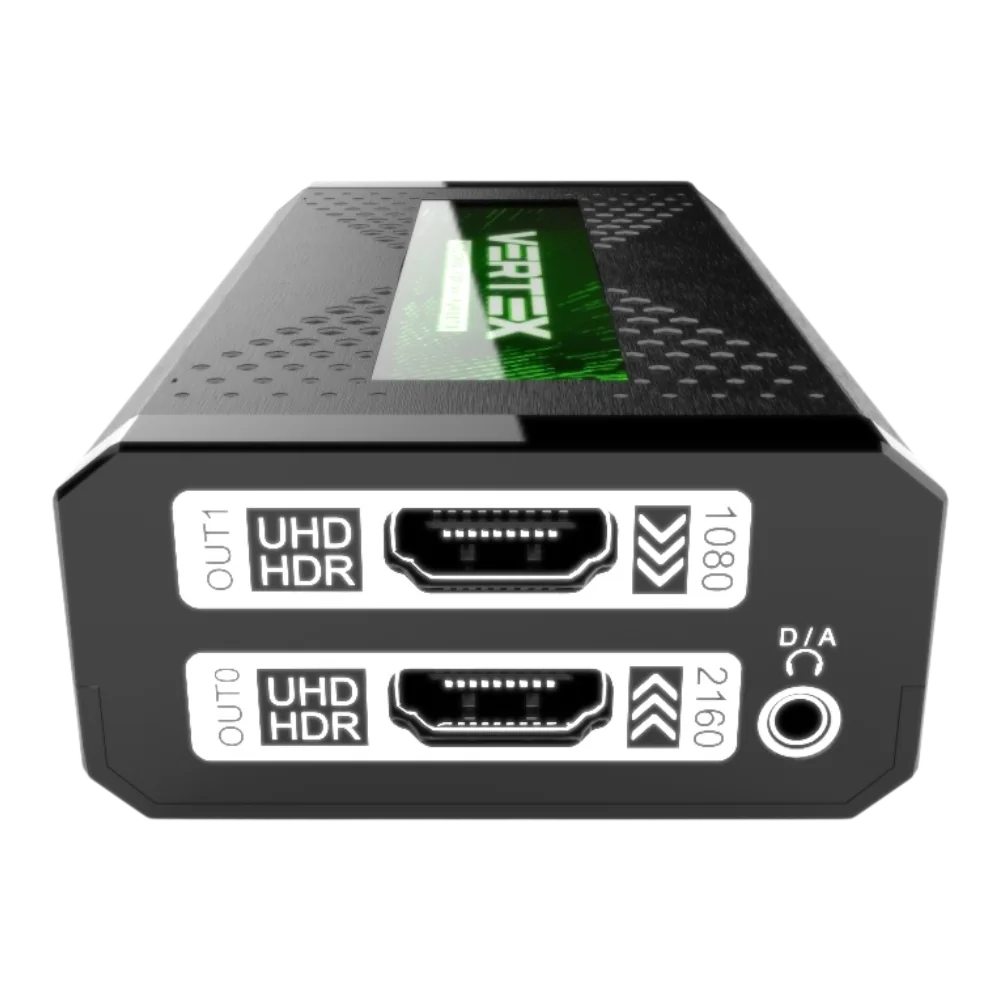

THE HARDWARE

SEE EVERY
CONNECTION.

Explore the Vertex from input to output.

Vertex inputs
HDMI INPUTS · RS232 · IR

TECHNICAL CORE / SYSTEM MATRIX

VERTEX SPECS.

CORE STATUSONLINEHDMI SIGNAL PROCESSOR
VERTEX // TECHNICAL TELEMETRY HDMI 2.0b · 600MHz · 18Gbps LIVE
HDfuryVERTEXTECHNICAL CORE 2 × 2 HDMI MATRIX
01 / LINKHDMI 2.0b

Level A · up to
600MHz / 18Gbps

02 / VIDEO4K60 4:4:4

Up to 8-bit at full
4K60 4:4:4

03 / DEPTH4K60 4:2:2

Up to 12-bit
workflows

04 / ROUTING2 × 2

Matrix · splitter
switcher · scaler

05 / HDRHDR10+ / HLG

Advanced HDR
signal handling

06 / VISIONDV / LLDV

Dolby Vision
workflow support

07 / EDID100 EDIDs

Including 10
custom slots

08 / LATENCY<1 ms

Specified processing
input lag

09 / UPSCALE1080p → 2160p

Dedicated upscale
capability

10 / DOWNSCALE2160p → 1080p

Dedicated downscale
capability

11 / MONITOROLED + OSD

Signal information
device + display

12 / CONTROLIR · RS232 · USB

Plus Windows
GUI control

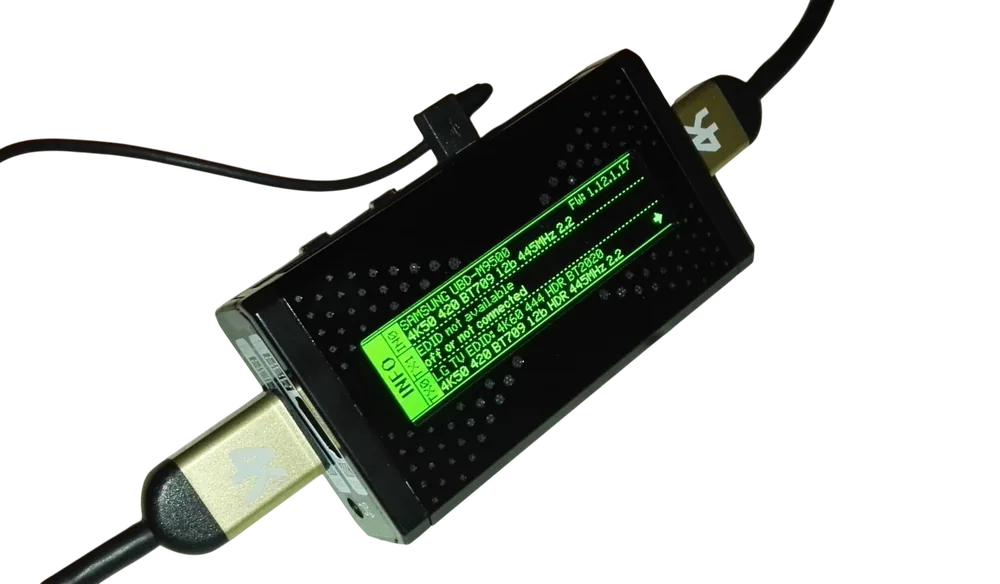

Vertex display and controls

INFORMATION AT A GLANCE

KNOW WHAT YOUR
SIGNAL IS DOING.

Vertex gives you direct visibility into the HDMI signal and provides the controls needed to tune a complex AV setup.

VERTEX SIGNAL ARCHITECTURE

ONE BOX.
FOUR HDMI PATHS.

Route two HDMI sources independently to two displays, while Vertex manages the signal path between them.

INPUTINP 0HDMI SOURCE A
INPUTINP 1HDMI SOURCE B
HDfuryVERTEX2 × 2 MATRIX
OUTPUTOUT 0PRIMARY DISPLAY
OUTPUTOUT 1SECONDARY DISPLAY

SIGNAL LABORATORY / VERTEX CORE OPERATIONS

SEE IT. ROUTE IT.
CHANGE IT.

HDMI TOOLSETREADYSELECT A FUNCTION TO EXPLORE
HDfuryVERTEXSIGNAL LAB
01 / ROUTETWO SOURCES.
TWO DESTINATIONS.

Route two HDMI sources independently, or use Vertex as a splitter or switcher.

EXPLORE ROUTING → 02 / CONVERTBRIDGE DIFFERENT
AV EQUIPMENT.

Adapt resolution, chroma, color space, color depth and HDCP for mixed-capability chains.

EXPLORE CONVERSION → 03 / INSPECTMAKE HDMI
VISIBLE.

Use OLED and on-screen signal information to expose what is happening inside the HDMI chain.

EXPLORE SIGNAL INFO → 04 / CUSTOMIZEEDID & INFOFRAME
TOOLKIT.

Shape EDID and InfoFrame behaviour for calibration, integration, testing and specialist workflows.

EXPLORE TOOLKIT →
ROUTINGCONVERSIONINSPECTIONCUSTOMIZATION OPEN FULL GLOSSARY →
LIVE SIGNAL INTELLIGENCE

HDMI SHOULD NOT
BE A BLACK BOX.

INFO
TX0
TX1
RX0
1.38.1.45
SCEI PS4
4K59.933 422 BT2020 12b HDR 593MHz 2.2
➜
3DFURY #1   EDID: 1080P60 12b
1080P59.933 444 BT709 12b HDR 223MHz 1.4
➜
LG TV EDID: 4K60 444 HDR BT2020
4K59.933 422 BT2020 12b HDR 593MHz 2.2

SOFTWARE & DOCUMENTATION

DOWNLOADS

Firmware and Windows GUI packages, the Rev 1.30 manual, Silabs USB drivers and utilities for Vertex.

DOWNLOAD CENTER

SUPPORT

NEED HELP WITH VERTEX?

Setup help, troubleshooting and product support.

CONTACT SUPPORT

HDfury COMMUNITY

BUILT FOR PEOPLE WHO
CARE ABOUT THE SIGNAL.

HDfury Vertex

TAILORED FOR AV PURISTS

CONNECT · OPTIMIZE · CONTROL

BUY VERTEX
NEW TO VERTEX?

START WITH THE SETUP ASSISTANT.

Choose your source, display, AVR, second output, audio path and goal. Vertex will guide you from the simplest working HDMI chain to the complete setup.

BUILD MY SETUP →SETUP LIBRARY →FIX A PROBLEM →
